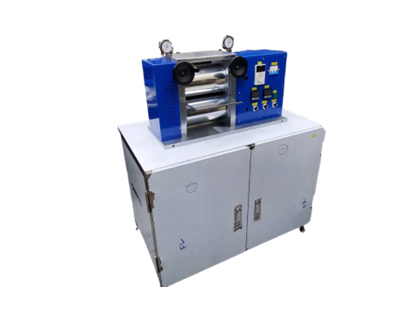

Electric Hot Rolling Press(HRL-2300A)

▶ Basic Specifications

Model:

HRL-2300A

Specification:

  1. Power supply: Three-phase AC 220V / 60Hz, power about 4KW
  2. Temperature : 90°C (Max), double rollers can be heated and set the temperature independently
  3. Size: Φ150mm×230mm
  4. Hardness of Roller : Surface grinding and chrome plating, hardness>HRC63
  5. Rolling Concentricity : ± 3μm (gap tolerance may change with temperature increase)
  6. Effective gap: 0.02 ~ 1.0mm, with two dial indicators for instant adjustment and observation
  7. Rolling speed: 0~0.6 m/min adjustable
  8. Working width: 210mm (Max)
  9. Maximum pressure: 5 ton
  10. Temperature accuracy: ± 3℃
  11. With table and bottom wheel
  12. Net Weight : About 350Kg
  13. Dimensions : L*W*H about 100 cm x 60 cm x 145 cm
  14. Front and rear acrylic sheet protection (feed and discharge ports)
  15. The roller has the function of forward and reverse rotation, and there is an independent switch to switch
  16. With emergency stop device
