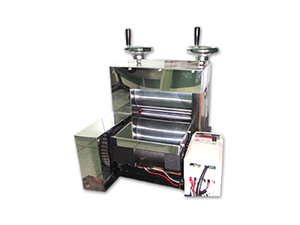

Rolling press (RL-3000A)

▶ Basic Specifications

Model:

RL-3000A

Manufacturer:

UBIQ (Taiwan)

Specification:

  1. Roller Dimensions : Ø150×200mm
  2. Hardness Of Roller:Chrome plated surface,with HRC63
  3. Rolling concentricity:±2um
  4. Rolling Gap︰0.01-3mm adjustable
  5. Rolling Speed︰0~3m/min adjustable
  6. Rolling Width︰180mm Max
  7. Working Voltage:AC 220V Three Phase, Current value 5A (Power of battery 1kw)
  8. Rolling Pressure:3 Ton
  9. Mode switch (Automatic and Manual)
  10. With forward and stop function in automatic mode
    (Press the start key :The rolling press starts automatically, until press the stop button to stop the machine.)
  11. With forward and reverse function in manual mode
    (It needs to be pressed continuously to turn, and it will stop immediately as soon as stop pressing the button,it be called inching device that features are maintenance and cleaning equipment)
  12. With 2 pcs (Thickness 0.03~0.5mm,13 brades,Legnth : 10 cm,Made in Japan or same grade )
