Battery Automation Test Systems

▶ Basic Specifications

Model:

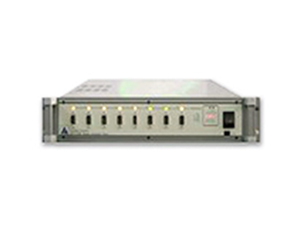

BAT-750B 5V (5mA、50mA two-stage) 8 Channels

Specifications:

  1. Charge:CC 、CV (0.005V~4.7V)
  2. Discharge:CC、CP、CV (0.005V Constant voltage discharge)
  3. Current accuracy:5mA±(0.06%+1uA) &50mA±(0.06%+10uA)
  4. Voltage accuracy:±(0.05%+2mV)
  5. Including AC internal resistance measurement specifications : 0~400mΩ±0.2mΩ
  6. The computer is included and the latest version testing software is installed and calibrated for immediate use.
  7. Including 8 sets of CR2032 test fixtures and 8 sets of four-wire charging and discharging wires
  8. Data reading speed:60ms
