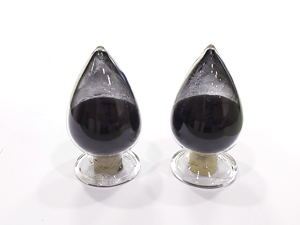

正極材料-磷酸鋰鐵正極材料(LiFePO₄)
▶ 基本規格
型號：
LFP-13FT
化學式：
LiFePO₄
規格：
| Test Parameter | Unit | Equipment/Method | Standard | Result | Remark |
|---|---|---|---|---|---|
| Physics Characteristics | |||||
| Tap Density | g/cm³ | ASTM B527 | 0.95±0.15 | 1.08 | OK |
| Specific Surface Area | m²/g | Micromeritice Gemini V | 11±2 | 11.73 | OK |
| D10 | μm | HORIBA LA-950V2 | <1.5 | 1.32 | OK |
| D50 | μm | 2~4 | 2.35 | OK | |
| D90 | μm | 4~7 | 4.62 | OK | |
| Moisture | ppm | MITSUBISHI CHEMICAL CA-200 |
≦1200 | 593 | OK |
| Composition Analysis | |||||
| Li | % | VARIN AA240 | 4.4±0.5 | OK | |
| Fe | % | 34.4±1.5 | OK | ||
| P | % | 20.0±1.0 | OK | ||
| C | % | Heraeus vario III | 1~3% | OK | |
| Electrochemical Characteristics | |||||
| 0.2C Discharge Capacity | mAh/g | charge/discharge rate @0.2C/0.2C @25℃ |
152±2 | 153 | OK |
| 1C Discharge Capacity | mAh/g | charge/discharge rate @0.5C/1C @25℃ |
140±3 | 143 | OK |
