CR2032 Coin Cell Case Set (Al-Clad Bottom Case,≧4.8V )

▶ Basic Specifications

Model：

CR2032-4PA04

Specifications：

  1. Dimensions (Dia x Height) : Ø20mm*3.2mm
  2. After perfectly crimping, No leakage & No short circuit

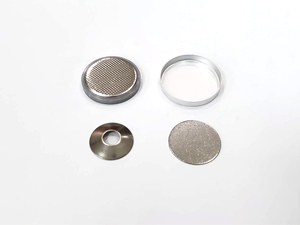

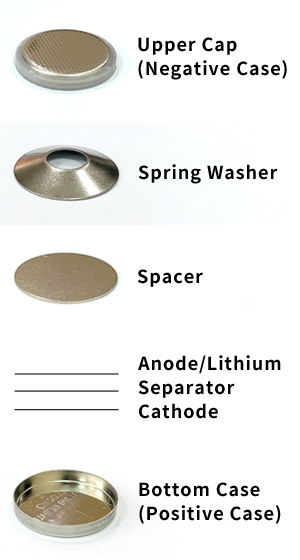

  3. 4Parts：
    Upper Cap : Ø19.3mm*Height 2.86mm
    Bottom Case : Ø20.0mm*Height 2.86mm
    (Al-clad)
    Spacer : Ø15.5mm*Height 0.4mm
    Spring washer : Ø13.0mm*Height 1.9mm
    (Tolerance±0.1 mm)
