Model：

CR2032-4P316

Specifications：

1. Dimensions (Dia x Height) : Ø20mm*3.2mm
2. Material : SUS316 Stainless steel
3. After perfectly crimping, No leakage & No short circuit

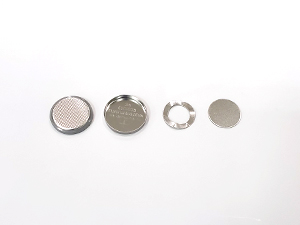

4. 4Parts :
   Upper Cap : Ø19.3mm*Height 2.86mm
   Bottom Case : Ø20.0mm*Height 2.86mm
   Spacer : Ø15.5mm*Height 0.5mm
   Spring washer : Ø14.5mm*Height 1.2mm (Wave)
   (Tolerance±0.1mm)
